Product Description:

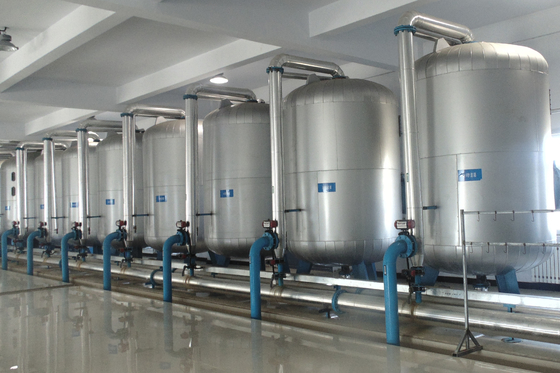

The quartz sand filter is a remarkable water treatment equipment that utilizes multi-layer filtration technology to eliminate suspended matter and impurities present in the water. The water is purified by passing through the different sizes of quartz sand media, which ensures that the water quality is maintained. This equipment comes with an automatic backwashing function that regularly eliminates dirt accumulation and improves the filtration efficiency and service life of the equipment. Many industries, such as chemical, food, and electricity, have found the quartz sand filter suitable for their water treatment needs and rely on its effective performance.

Water quality pretreatment is an essential step before entering the main treatment system. The quartz sand filter protects the subsequent equipment by performing preliminary filtration and removes impurities efficiently to ensure qualified water quality. The equipment also supports industrial water circulation systems, leading to an improved utilization of water resources.

Quartz sand filters come equipped with a fault alarm system that monitors the equipment status in real-time. Regular monitoring helps detect faults early, which leads to comprehensively maintaining and increasing the lifetime of the equipment.

Features:

Filter Material: The filter material utilized in our system is known for its high hardness, good corrosion resistance, high density, high mechanical strength, strong dirt carrying capacity, and long service life.

Multi-layer Filter Media: Our multi-layer filter media employs quartz sand of varying particle sizes to eliminate suspended matter and particulate matter from water, thus enhancing water quality.

Automatic Backwashing: We incorporate an automatic backwashing system that reduces manual maintenance and improves operating efficiency.

Strong Adaptability: Our filtration parameters are adjustable, enabling swift response to changed water quality and diverse water needs according to requirement.

Easy Operation: Our system is designed to be straightforward and user-friendly, making it easy to operate and maintain.

Compact Structure: Our filter has a small footprint, making it easy to install in a variety of locations.

Working Principle: Our quartz sand filter removes solid particles and pollutants from water by employing gravity and friction between particles to pass water through a filter medium filled with quartz sand. After filtration, clean water is discharged through the outlet. Regular backwashing is a critical aspect of the system and ensures efficient operation of the filter.

Working Steps: The system has two working steps, which are normal water production, including backwash and forward wash for effective filtering.

System Design: The system is designed with capacity considerations for the tank as well as the water inlet pipe size. We have also executed material selection and determination of its loading amount.

Technical Parameters:

Silica, also known as silicon dioxide (SiO ₂ ), is a widely used material in various industrial applications. It is a chemical compound that is naturally found in the Earth's crust and has a purity of 99%.

One of the important characteristics of silica is its low abrasion rate. It has been tested and found to have an abrasion rate of only 0.3%, making it highly resistant to wear and tear.

The bulk density of silica ranges from 1.6 to 1.75g/ml. This is an important factor in determining the amount of material required for a given application. Furthermore, the porosity of silica ranges from 36% to 45%, which makes it an ideal material for filtration applications.

Lastly, the filtration rate of silica is between 6 and 8m/h. This means that it is capable of efficiently filtering large volumes of fluids or gases in a short amount of time.

Applications:

Chemical industry typically utilize water in their production processes, both as a source and for circulating systems. Water treatment is important to maintain the quality of water and ensure the efficient operation of equipment and processes.

In the food industry, water is a critical component in many food processing operations. Ensuring that water is clean and safe for both consumption and use can help contribute to the overall safety and quality of food products produced.

The power industry relies on water for cooling systems in order to maintain proper temperatures for efficient generation. The quality of water used, particularly in large-scale power plants, is important in preventing scale buildup and other issues that could negatively impact the equipment and processes.

The paper industry requires water for various stages in the production process, including the treatment of pulp and paper. Water quality can impact the overall efficiency and effectiveness of the process and the quality of the end product.

Municipal water treatment processes are an integral part of urban water supply and sewage treatment. These processes help to ensure that water is safe for consumption and that waste is properly treated before being returned to the environment.
