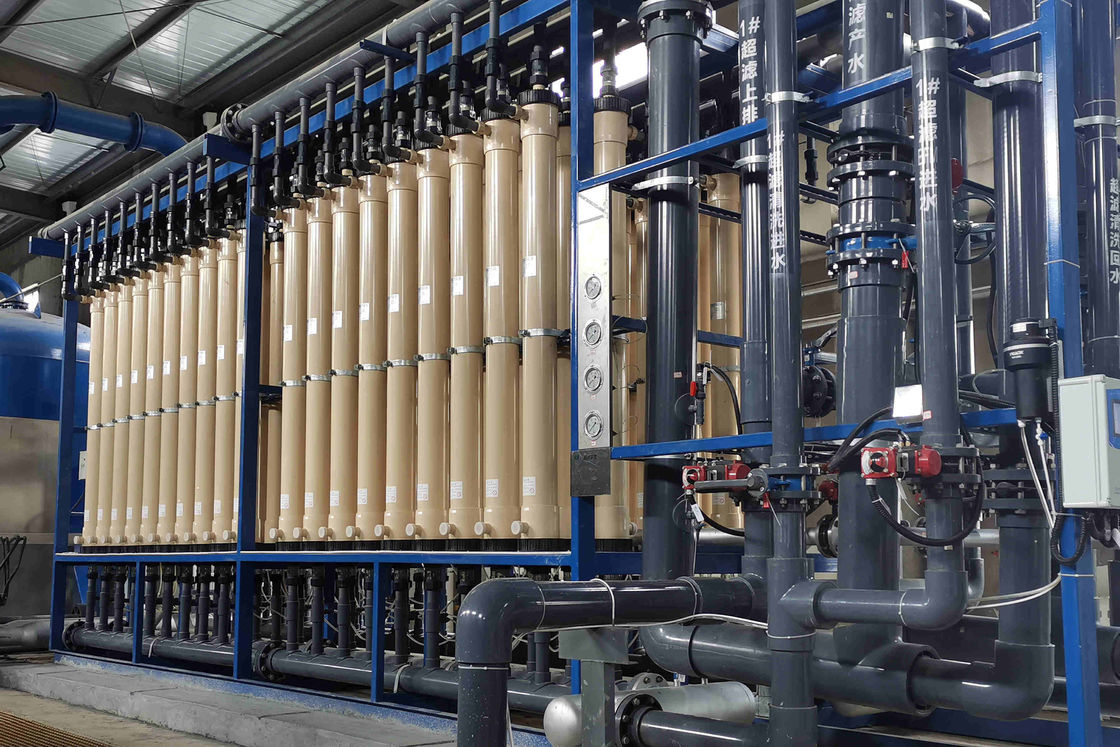

UF Membrane Ultra Filtration System for Industrial Waste Water Treatment

Brand Name:	wanyuan
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Wooden box
Payment Terms:	L/C, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,ISO14001,ISO45001

PH Value:

1~13

Type:

Ultra Filtration System

Filtration Cycle:

20~60min

Maximum Water Inlet Pressure:

0.5MPa

Backwash Pressure:

<2bar

Backwash Flux:

180~240 L/m2*h

Temperature:

0~45℃

Influent Particles:

<150μm

Supply Ability:

Negotiable according to customer requirements

Highlight:

UF Membrane Ultra Filtration System

Waste Water Treatment Ultra Filtration System

Pharmaceutical Industry Ultrafiltration Water Filter

Product Description

UF Membrane Ultra Filtration System for Industrial Waste Water Treatment

Product Description:

Product Introduction

Ultrafiltration technology selectively separates substances through a membrane's microporous structure on its surface. When a liquid mixture flows through the membrane under a certain pressure, small molecular solutes pass through (ultrafiltrate), while large molecular substances are retained. This increases the concentration of large molecules in the original liquid (concentrate) and successfully separates, concentrates, and purifies molecules. A pressure of 0.1~3bar is typically used.

Working Principle

Ultrafiltration equipment functions on membrane separation technology. Water flow containing pollutants is passed through the ultrafiltration membrane. Water molecules and small molecular substances can penetrate the membrane, whereas larger particles and pollutants are retained on the membrane surface and created into a concentrate. The concentrate can be discharged or further processed after treatment.

Configuration

Backwash system
Chemical dispersion cleaning system (optional)
Cleaning system
Compressed air system

Working Steps

Upper backwash (15~30 seconds)
Lower backwash (15~30 seconds)
Chemical enhanced backwash (CEB) can be selected when the water quality is particularly poor or fluctuates greatly
Positive flushing (10~30 seconds)

Features:

Product Functions:

The product is designed to remove suspended matter, bacteria, and viruses from water, effectively improving its quality. It supports the reuse of reclaimed water and offers a stable water treatment effect that can be used in conjunction with other water treatment processes to improve overall treatment efficiency. Fine filtration is used to further enhance the water quality.

Product Features:

High filtration efficiency - the product can intercept particles larger than 0.01μm.
Low energy consumption and good effect - the filtration process is carried out at room temperature, making it ideal for heat-sensitive substances such as drugs, enzymes, and fruit juices.
Energy saving and environmental protection - the filtration process doesn't require heating and doesn't add any chemical reagents, making it pollution-free and environmentally friendly.
High separation efficiency - it is very effective for the recovery of trace components in dilute solutions and the concentration of low-concentration solutions.
Easy operation - the process is simple and pressure is the only power needed for membrane separation. It has a short process, simple operation, and is easy to control and maintain.

Technical Parameters:

Water Filtration System Specifications

Temperature Range

The water filtration system is designed to operate within a temperature range of 0~45℃.

PH Range

The PH value range of water that can be filtered using the system is 1~13.

Water Production Flux

The maximum water production flux that can be achieved by the filtration system is 150 L/m2*h.

Backwash Flux

The backwash flux ranged from 180 to 240 L/m2*h can be achieved by the filtration system.

Maximum Transmembrane Pressure Difference

The filtration system is designed to operate with a maximum transmembrane pressure difference of 0.2MPa.

Maximum Water Inlet Pressure

The maximum water inlet pressure the filtration system can handle is 0.5MPa.

Filtration Cycle

The filtration cycle of the system can be set for 20 to 60 minutes.

Backwash Time

The backwash time can be set from 30 to 60 seconds for effective cleaning of the system.

Influent Particles

The filtration system can handle influent particles of size less than 150μm.

Backwash Pressure

The backwash pressure must be less than 2bar for the system to operate effectively.

Applications:

System Design

In any wastewater treatment system, one of the most critical aspects is the efficient and effective pretreatment stage. This involves obtaining all the necessary information about the raw water. Critical raw water information to be obtained includes its type, turbidity, COD, and suspended solids levels, among others.

The next step in the system design process is determining the number of membrane components to be used and their corresponding operational parameters. Another design consideration in the system is the backwash system. A good backwash system is essential in ensuring the longevity and reliability of the entire system.

The final step in the design of the system is the selection of dosing type and determination of the proper dosing amount. Proper dosing ensures the effectiveness of the system.

Application Scope

Our system is designed to cater to several industries and applications, including:

Industrial wastewater treatment
Municipal sewage treatment
Food and beverage industry
Pharmaceutical industry
Circulating water treatment in power industry
Paper and textile industry
Pretreatment of seawater desalination

We are committed to providing the best treatment system that is tailored to meet the needs of each application effectively.

Support and Services:

The Ultrafiltration Equipment product comes with comprehensive technical support and services, including:

On-site installation and commissioning
Operator training and maintenance support
24/7 remote monitoring and troubleshooting
Regular system upgrades and software updates
Replacement parts and consumables
Annual maintenance contracts

Our experienced team of technicians and engineers are dedicated to ensuring the optimal performance and longevity of your ultrafiltration system. Contact us for more information on our support and service offerings.
