Product Description:

Ultrafiltration technology is a process that selectively separates substances using the microporous structure on the membrane surface. This technology works by allowing liquid mixtures to flow through the membrane surface with a certain pressure. Small molecular solutes can pass through the membrane (known as ultrafiltrate), while large molecular substances are retained, resulting in an increase in the concentration of large molecules in the original liquid (known as concentrate). This process achieves the purpose of separation, concentration, and purification of large and small molecules. Typically, a pressure of 0.1~3bar is used.

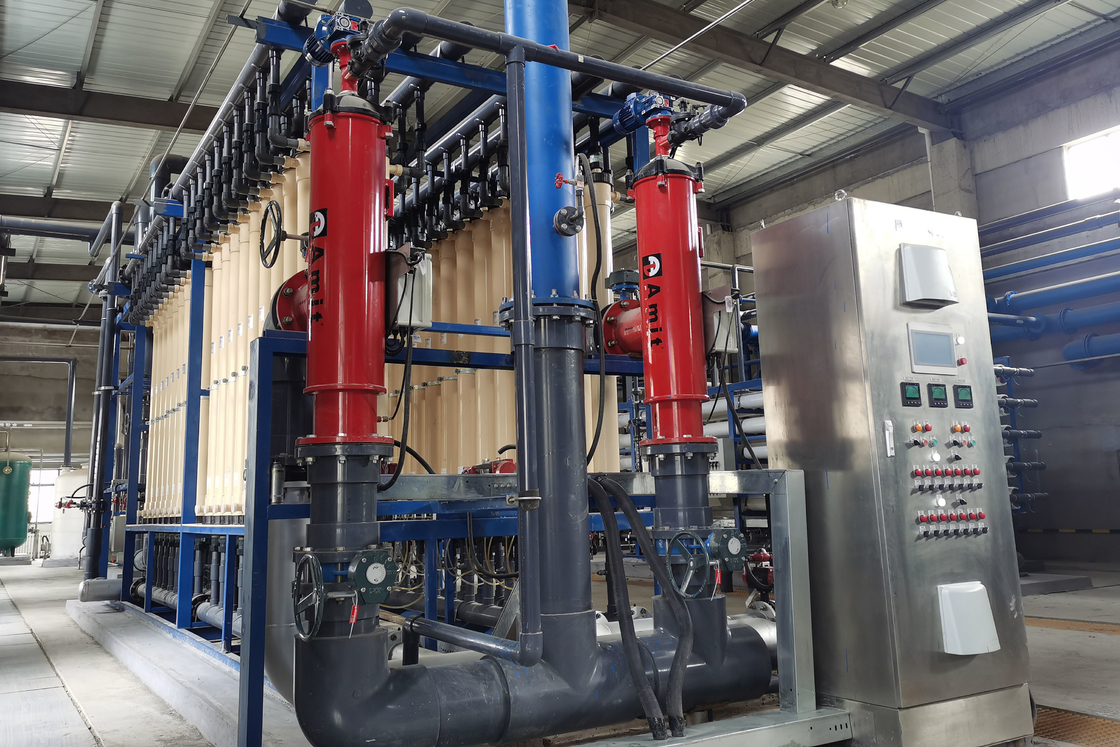

Ultrafiltration equipment works based on membrane separation technology. When polluted water flows through the ultrafiltration membrane, water molecules and small molecular substances can pass through the membrane. However, larger particles and pollutants are retained on the membrane surface to form a concentrate that can be discharged or further processed after treatment.

The equipment is configured with a backwash system, chemical dispersion cleaning system (optional), cleaning system, and compressed air system.

The working steps for ultrafiltration equipment include upper backwash (15~30s), lower backwash (15~30s), chemical enhanced backwash (CEB) that can be selected when the water quality is particularly poor or the water quality fluctuates greatly, and positive flushing (10~30s).

Features:

Our product has a variety of functions that can greatly improve the quality of water. It can effectively remove suspended matter, bacteria, and viruses from water, ensuring that the water is clean and safe for consumption. In addition, our product is equipped with fine filtration technology, which can further improve water quality.

We understand the importance of water conservation and our product supports the reuse of reclaimed water. Once treated, the water's quality is stable, thus ensuring the safety of its reuse. Our product can also be used in conjunction with other water treatment processes to improve the overall efficiency of treatment.

We take pride in the numerous features our product possesses. The filtration efficiency is high, with the ability to intercept particles up to 0.01μm. The filtration process is carried out at room temperature, with mild conditions that are particularly suitable for heat-sensitive substances like drugs, enzymes, and fruit juices. Furthermore, there is low energy consumption with good effect and the process does not require heating, making it energy-saving and environmentally friendly. Our product has high separation efficiency, making it very effective for the recovery of trace components in dilute solutions and the concentration of low-concentration solutions. Lastly, operation is easy with the process only relying on pressure as the power of membrane separation and having a simple separation device, short process, simple operation, and easy control and maintenance.

Note: Our product is designed to help ensure clean and safe water for consumption. Please contact our customer service team should you have any inquiries or concerns.

Technical Parameters:

The temperature range of this system is 0~45℃.

The PH value that this system can handle ranges from 1~13.

The maximum water production flux of this system is 150 L/m2*h.

The backwash flux range of this system is from 180~240 L/m2*h.

This system can withstand a maximum transmembrane pressure difference of 0.2MPa.

The maximum water inlet pressure for this system is 0.5MPa.

The filtration cycle time for this system ranges from 20 to 60 minutes.

The backwash time for this system ranges from 30 to 60 seconds.

This system is capable of handling influent particles with a size of <150μm.

The backwash pressure of this system is <2 bar.

Applications:

The system design involves several key components that aim to ensure the efficient and effective treatment of water. One of the critical aspects of the design is the pretreatment process, which must be reasonable and effective. The pretreatment process helps to remove impurities and prepare the water for further processing.

Another crucial element of the system design is obtaining necessary raw water information. This information includes the raw water type, turbidity, COD, suspended solids, among others. This information helps to determine the appropriate treatment process and equipment for the specific water source.

In addition, the number of membrane components and various operating parameters must be determined. This ensures that the system meets the specific treatment requirements and can operate optimally. The backwash system design is also essential as it supports the cleaning and maintenance of the membrane components.

The selection of dosing type and determining the dosing amount is also a vital aspect of system design. This determines how chemicals such as flocculants and coagulants are added to the water to aid in the purification process.

The system design has numerous applications and can be used in various industries, including:

• Industrial wastewater treatment
• Municipal sewage treatment
• Food and beverage industry
• Pharmaceutical industry
• Circulating water treatment in power industry
• Paper and textile industry
• Pretreatment of seawater desalination

Regardless of the industry application, the critical components of the system design remain the same. These include reasonable and effective pretreatment, obtaining necessary raw water information, determining the appropriate treatment process and equipment, and designing the backwash and dosing systems.

Support and Services:

Our Ultrafiltration Equipment is designed to provide efficient, reliable and high-quality performance. We offer technical support and services to ensure that our customers are satisfied with their equipment. Our support services include:

• Installation and commissioning
• Training and education
• Preventive maintenance
• On-site troubleshooting and repair
• Remote technical support
• Equipment upgrades and retrofits

We have a team of experienced and knowledgeable technicians who are available to assist our customers with any questions or issues they may have. Our goal is to ensure that our customers' equipment is running smoothly and efficiently at all times.
