Product Description:

Ultrafiltration technology selectively separates substances through the microporous structure on the membrane surface. The ultrafiltrate is small molecular solutes that pass through the membrane, while the concentrate is of large molecular substances that are retained. This achieves the purpose of separating, concentrating, and purifying large and small molecules. The pressure used is usually 0.1~3bar.

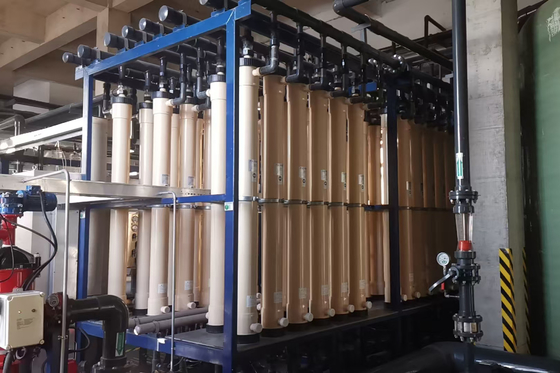

The ultrafiltration equipment works through membrane separation technology. When water flow containing pollutants passes through the ultrafiltration membrane, water molecules and small molecular substances pass through the membrane, and larger particles and pollutants are retained on the surface of the membrane to form a concentrate. After treatment, the concentrate can be discharged or further processed.

The ultrafiltration equipment has a backwash system, chemical dispersion cleaning system (optional), cleaning system, and compressed air system.

The working steps in the ultrafiltration equipment are upper backwash (15~30s), lower backwash (15~30s), chemical enhanced backwash (CEB) can be selected when the water quality is poor or fluctuates greatly, and positive flushing (10~30s).

Features:

This product is designed to remove suspended matter, bacteria, and viruses from water. It also includes fine filtration to improve water quality. Additionally, it supports the reuse of reclaimed water, providing a more sustainable water treatment solution. The stable water treatment effect ensures consistent and reliable performance. Furthermore, this product can be used in conjunction with other water treatment processes to improve overall treatment efficiency.

One of the key features of this product is its high filtration efficiency. It can intercept particles larger than 0.01μm, providing a thorough and effective filtration process. Additionally, the filtration process is carried out at room temperature, with mild conditions and no component damage. This is particularly suitable for the separation, classification, concentration, and enrichment of heat-sensitive substances such as drugs, enzymes, and fruit juices.

Energy saving and environmental protection are also important features of this product. The filtration process does not require heating, has low energy consumption, and does not require the addition of chemical reagents, making it pollution-free and eco-friendly.

High separation efficiency is another benefit of this product, making it effective for the recovery of trace components in dilute solutions and the concentration of low-concentration solutions. The process is also easy to operate, using pressure as the power of membrane separation. The simple separation device, short process, easy control, and maintenance make it ideal for a wide range of applications.

Technical Parameters:

Applications:

For a well-functioning water treatment system, it is essential to have a design that is both reasonable and effective. The system must be designed to handle the specific characteristics of the raw water it will be treating. This can be achieved through the following steps:

1. Obtaining necessary raw water information: This includes information such as raw water type, turbidity, COD, suspended solids, and other relevant data.
2. Determining the number of membrane components and various parameters in operation: This involves selecting the appropriate number of membrane components and determining the relevant operational parameters such as pressure, flux, and recovery.
3. Designing the backwash system: This is important to ensure that the membrane remains clean and functioning effectively over time.
4. Selecting the dosing type and determining the dosing amount: This is necessary to ensure that the appropriate chemicals are used to treat the specific raw water and in the correct quantity.

The water treatment system can be used in a variety of industries to provide clean and safe water for various purposes. Some of the industries that could benefit from this system include:

• Industrial wastewater treatment
• Municipal sewage treatment
• Food and beverage industry
• Pharmaceutical industry
• Circulating water treatment in power industry
• Paper and textile industry
• Pretreatment of seawater desalination

Support and Services:

Our Ultrafiltration Equipment is designed to efficiently remove suspended solids, bacteria, viruses, and other particles from water. Our technical support team is available to help with any questions or issues you may encounter with the equipment. We offer a range of services, including installation, maintenance, and repair. Our team can also provide training to help you better understand the equipment and how to use it effectively.
