Product Description:

Product Introduction:

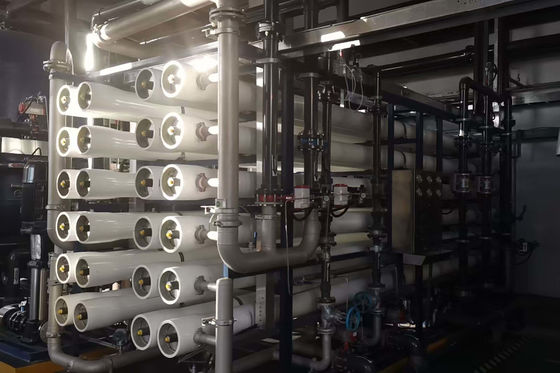

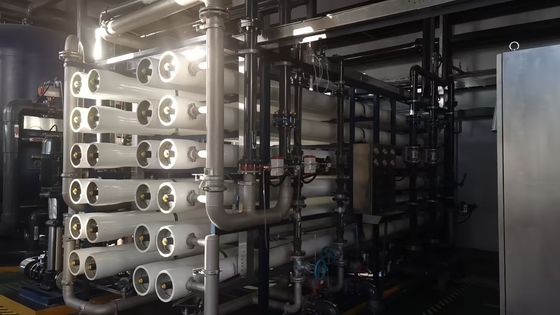

The single-stage reverse osmosis system is a highly efficient water treatment equipment that utilizes reverse osmosis membrane technology to effectively remove ions and pollutants dissolved in water. This process is achieved by applying pressure to make water molecules pass through the semi-permeable membrane. The equipment is used to reduce the total dissolved solids (TDS), heavy metals, and other harmful substances in water, providing high-quality pure water. The system has a wide range of applications in industries such as food and beverage, pharmaceuticals and other fields.

Working Principle:

The single-stage reverse osmosis system works on the principle of selective permeability of the reverse osmosis membrane. When raw water is pressurized by a high-pressure pump, the water molecules pass through the reverse osmosis membrane, while dissolved ions, bacteria, and organic matter are blocked on the other side of the membrane. This process purifies water and removes impurities. The pore size of the reverse osmosis membrane is small, allowing only water molecules to pass through, while larger solutes are retained, resulting in two types of water quality: purified pure water and concentrated water.

Working Steps:

The working steps of the single-stage reverse osmosis system include raw water pretreatment, security filter, high-pressure pump, RO system, and pure water production. These steps ensure that the water is free from contaminants and impurities. The purified water can then be used in various industries, including food and beverage, pharmaceuticals, and other fields.

Features:

Our water treatment product effectively removes salt, heavy metals, and other dissolved solids in water, ensuring safer and cleaner water quality. Additionally, our product can remove bacteria, viruses, and other microorganisms from water, improving microbial control.

Our product can also significantly improve the conductivity and cleanliness of water, allowing it to meet various industrial and drinking quality standards. Moreover, it is also suitable for treating and reusing industrial wastewater, thereby reducing water resource waste.

Our water treatment product provides users with high efficiency, as its desalination rate and water purification capacity are exceptional and can handle various water sources.

Our product comes with a skid structure that can be flexibly configured according to water demand, which is convenient for expansion and maintenance. Additionally, our product is equipped with an advanced control system that provides users with intelligent monitoring and automatic control, enabling real-time water quality and system operation status monitoring.

Our product features an energy-saving design with a scientific and reasonable system, which helps reduce energy consumption and operating costs. Moreover, our product continuously provides stable high-quality water output that meets various industrial needs.

Technical Parameters:

When operating our system, it is imperative to keep the temperature within the range of 0℃ to 45℃. While the pressure inside the system should not exceed 41 bar, the pressure drop should not be more than 1 bar. It should also be noted that the SDI must not exceed 5.

It is also important to take into account the pH values of the liquid being filtered. During continuous operation, the pH should range from 2 to 11. In the event of short-term cleaning, however, the pH can be anywhere from 1 to 13. Exceeding these ranges could potentially damage the system.

To ensure optimal performance, it is recommended that the maximum water flow rate be limited to either 4040 3.6t/h or 8040 19t/h. Additionally, the allowable free chlorine content should not exceed 0.1ppm.

Applications:

Support and Services:

Our industrial reverse osmosis systems are designed to provide high-quality water for various industrial applications. Our technical support team is available to assist with any questions or concerns about the operation, maintenance, or troubleshooting of the system.

We also offer a range of services to ensure that your reverse osmosis system is operating at peak efficiency, including regular maintenance, system upgrades, and replacement parts. Our team of experienced technicians can provide on-site service and support to minimize downtime and maximize system performance.

Additionally, we offer training and educational resources to help our customers better understand their reverse osmosis systems and how to optimize their performance. We are committed to providing exceptional product support and services to ensure that our customers get the most out of their investment in our industrial reverse osmosis systems.
