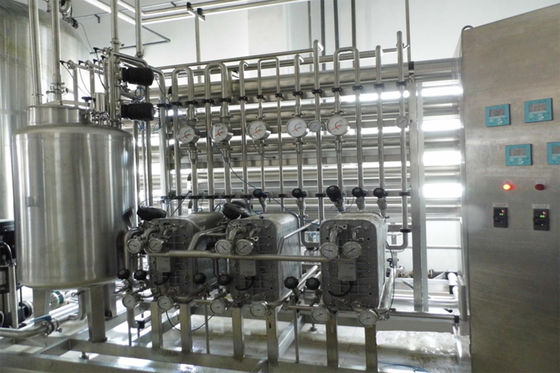

Industrial Double Stage Reverse Osmosis Water Purification System Automated Control

Brand Name:	wanyuan
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Wooden box
Payment Terms:	L/C, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,ISO14001,ISO45001

Stage:

Double Stage

Maximum Water Flow Rate:

4040 3.6t/h; 8040 19t/h

Type:

Industrial RO Water System

Maximum Water Supply SDI:

Allowable Free Chlorine Content:

0.1ppm

PH Value Range (continuous Operation):

2~11

Maximum Operating Temperature:

45℃

Maximum Operating Pressure:

41bar

Supply Ability:

Negotiable according to customer requirements

Highlight:

Double Stage Reverse Osmosis System

Water Purification Industrial Ro Units

Automated Control Double Stage RO System

Product Description

Industrial Double Stage Reverse Osmosis Water Purification System Automated Control

Product Description:

The two-stage reverse osmosis system is an efficient solution specifically designed for industrial water treatment. The system takes advantage of advanced reverse osmosis technology and enhances its ability to purify water through a two-stage treatment process.

The first stage of the system utilizes pretreatment equipment to remove large particle impurities like sediments and suspended solids, thereby protecting the reverse osmosis membrane. The second stage involves high-performance reverse osmosis membranes to further eliminate dissolved solids, heavy metals and microorganisms, effectively ensuring that the water meets all industry quality standards.

Due to its effectiveness, this system has found widespread usage across various industries, including electronics, pharmaceuticals, food and beverage, and others, for providing high-purity water.

Working principle:

To ensure the efficiency of the two-stage reverse osmosis system, each of the stages performs a different function:

Pretreatment: The system first removes suspended solids, sediments, and other impurities to protect the reverse osmosis membrane.
First-stage reverse osmosis: Here, under high pressure, water molecules move through the reverse osmosis membrane, and pure water flows out while the dissolved contaminants are intercepted.
Second-stage reverse osmosis: The first-stage reverse osmosis water then enters the second unit to further remove residual contaminants and improve the overall water quality.
Water output and monitoring: Finally, the high-purity water is tested in real-time through a water quality monitor to ensure that it meets any specific industry-set quality standards.

Product Functions:

The two-stage reverse osmosis system offers several benefits to industrial consumers. For instance:

Efficient impurity removal: The system ensures that at least 95% of dissolved solids, heavy metals, organic matter, and bacteria are removed in the water treatment process.
Water quality improvement: The system provides high-quality pure water that meets international standards to meet various industrial needs.
Wastewater reuse: This system helps achieve industrial wastewater treatment and recycling, which promotes the sustainable use of water resources.
Real-time monitoring: The system is equipped with a water quality monitor, ensuring that water quality is at its optimum level at all times.

Features:

Two-Stage Treatment Structure

The treatment structure consists of a two-stage reverse osmosis design. This design ensures high water treatment efficiency and produces a higher water quality, making it ideal for various applications.

Skid Design

Our structure is built with skid design, which makes maintenance and replacement easier with reduced operating costs. The skid design also improves the stability of the entire system.

Automated Control

The intelligent control system supports remote monitoring and management, which makes control operation easy. The automated process ensures consistent and superior water quality.

Strong Stability

The system maintains a low failure rate with low maintenance and replacement frequency. The design incorporates stable components that work together to offer excellent performance.

Excellent Water Quality

With its two-stage reverse osmosis design, the system can produce high-purity water that meets strict industrial water quality standards.

Environmental Protection and Energy Saving

The system boasts of efficient water treatment and resource reuse, which helps conserve the environment and saves energy. This environmentally friendly feature makes our system the perfect choice for customers interested in low impact sustainability.

Technical Parameters:

Maximum Operating Temperature

The maximum operating temperature of the system is 45℃.

Maximum Operating Pressure

The maximum operating pressure of the system is 41bar.

Maximum Pressure Drop

The maximum pressure drop of the system is 1bar.

pH Value Range - Continuous Operation

The pH value range for continuous operation of the system is 2 to 11.

pH Value Range - Short-Term Cleaning

The pH value range for short-term cleaning of the system is 1 to 13.

Maximum Water Flow Rate

The maximum water flow rate for the system varies with model capacity, 4040 at 3.6t/h and 8040 at 19t/h.

Maximum Water Supply SDI

The maximum allowable SDI level for the system's water supply is 5.

Allowable Free Chlorine Content

The allowable free chlorine content in the system is 0.1ppm.

Applications:

The chemical industry uses water treatment and reaction water treatment to maintain production stability.

The food and beverage industry requires purified water during manufacturing to meet food safety regulations.

To ensure drug safety and efficacy, the pharmaceutical industry requires high-purity water during drug production.

The electronic industry needs ultrapure water to ensure a clean manufacturing environment during production.

The environmental protection industry focuses on implementing sewage reuse to support sustainable resource conservation.

System Design

The system design requires careful planning to ensure the correct functioning of different components. The following components are essential:

Design of raw water tank (liquid level)
Design of raw water pump
Design of pretreatment
Design of reverse osmosis
Design of production water tank

Each of these components plays a crucial role in water treatment processes and must be appropriately designed to ensure the success of the overall system.
